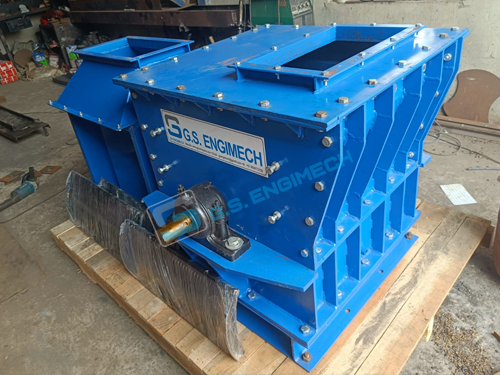

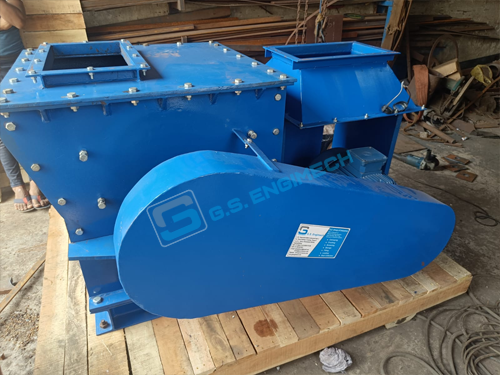

These Hammer crusher are used for crushing material which have middle of less than middle hardness such as barite, limestone, terrazzo, silica sandstone, coal, coke, gypsum, aluminum sulfate, slag, etc. They reduce large-lump materials to 6 to 8 mm size in one operation. These can be furnished with or without a metal trap for the removal of tramp iron or un-crushable lumps.
Applications Area:
- Coal and Power plant sector
- Cement Industries
- Minerals and Mining
- Brick Clay and ceramics industries
- Industrial Application
Technical Specification: Hammer Crusher
Crusher | Hammer type |
Type of Position | Fixed/ Portable |
Orientation | Horizontal |
Rotar Dia | 14” to 32” |
Rotor | Mild Steel / Stainless Steel / Hardox |
Capacity | 1 ton to 50ton/hr |
Drive | Belt Drive |
Speed | 950rpm |
Material | Coal/Brick/Paver/Sand |
Frequency | 50Hz |
Power | 440V |
Features:
- High reduction ratio
- Simple in operation
- Low investment cost
- High productivity
- Dependable product control and rugged wear parts
- Easy maintenance
